Demo

The sample report, from a synthetic landscape.

These screenshots come from the public repository and show the report for the acme-prod fixture: 8 apps, 3 findings (1 medium, 2 low). No real landscape appears on this site.

Overview page of the sample report for the acme-prod landscape: a plain-words summary, tiles for 8 apps scanned and 0 critical or high findings, a findings-by-severity chart (1 medium, 2 low) and the three top risky apps — fig. 1 · Overview: the summary in plain words, the tiles, the severity chart and the top risky apps.

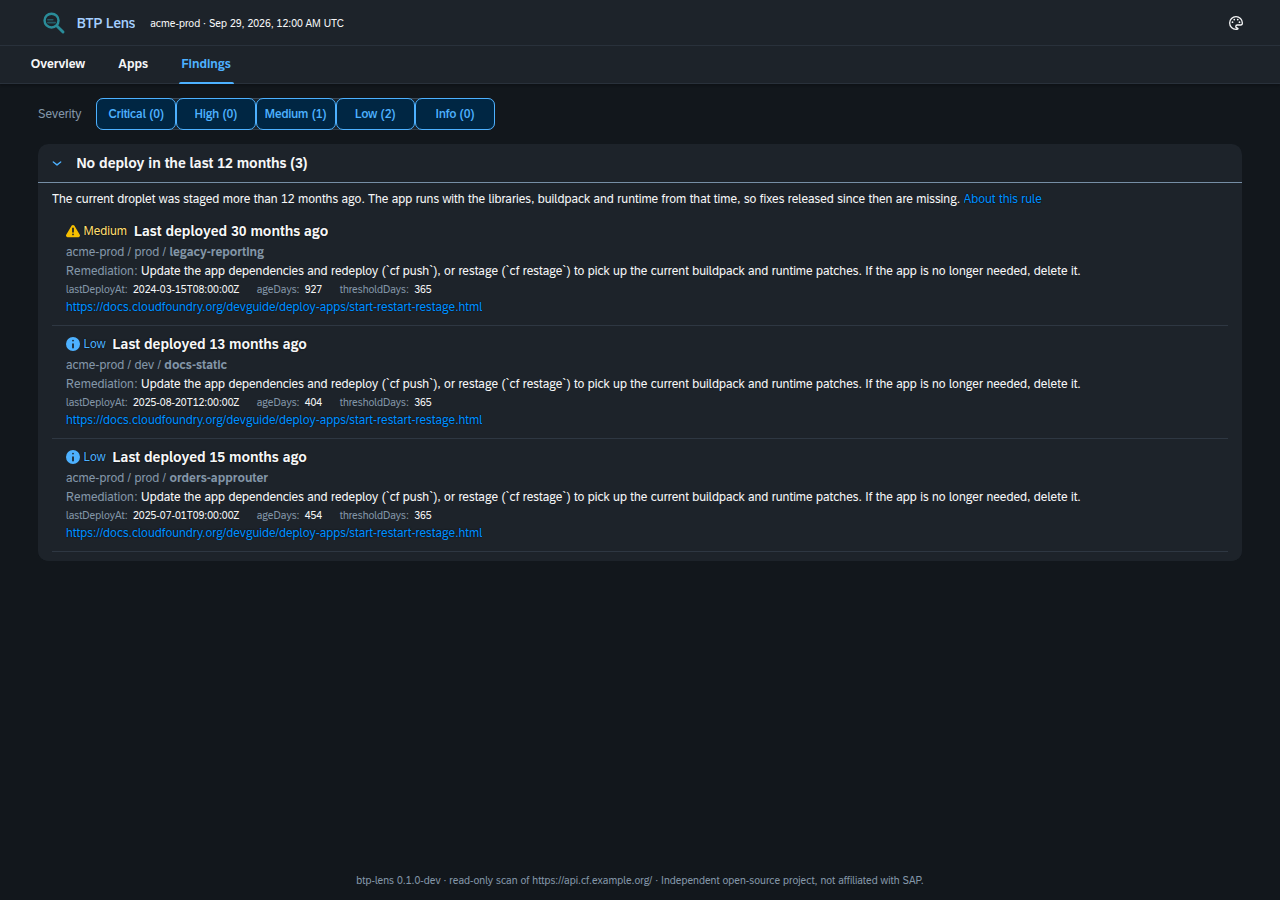

Findings page of the sample report in the dark theme: severity filters, then the rule No deploy in the last 12 months expanded with its three findings (one medium, two low), each with the app name, the remediation and the evidence — fig. 2 · Findings grouped by rule, dark theme. Each finding shows the app, the remediation and the evidence.

Generate the same report yourself

The report is a single HTML file with fonts, themes and data embedded, and a Content Security Policy with connect-src 'none'. From a clone of the public repository, with Node.js 22.12 or later:

git clone https://github.com/sebastianomarchesini/BTP-Lens.git && cd BTP-Lens
npm ci && npm run build
npm run sample        # writes reports/sample/btp-lens-report.html and the JSON, CSV and SARIF files

Open reports/sample/btp-lens-report.html in a browser. It works offline. A hosted copy of this sample will be added to this page.
